BD140 Micro Drill
| Parameter | Values |
| Speed | 0-1200rpm |
| Torque | 2.9N.m |
| Sterilization temperature | ≤135°C |
| Noise | ≤45dB |
| Operation(V) voltage | 7.2V |
| Radial circle run-out | ≤0.1mm |
| Axial movement | ≤0.5mm |
| Battery capacity | 1800mAh |
| input voltage | 110V-220V |
| Chuck gripper range | max 4mm |
| Battery | NI-MH |

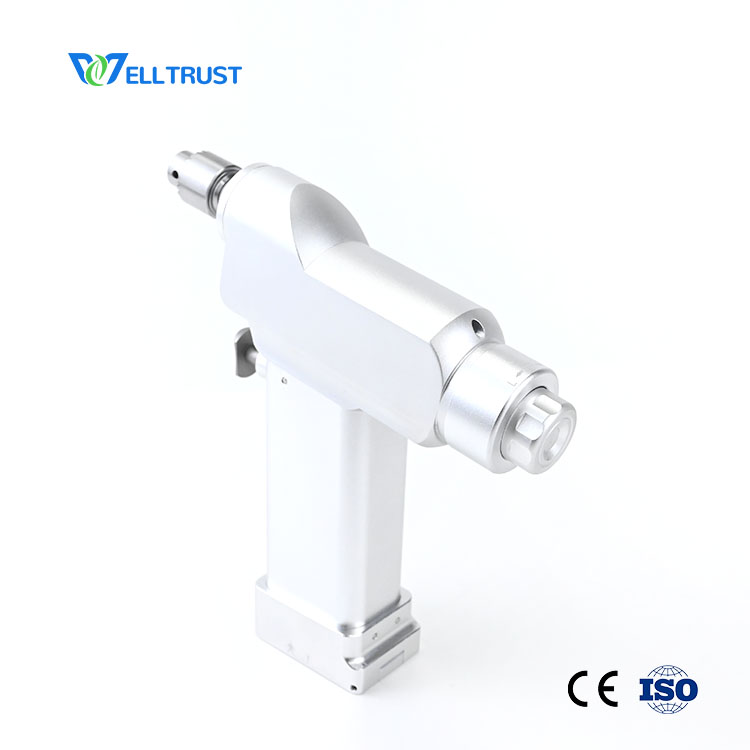

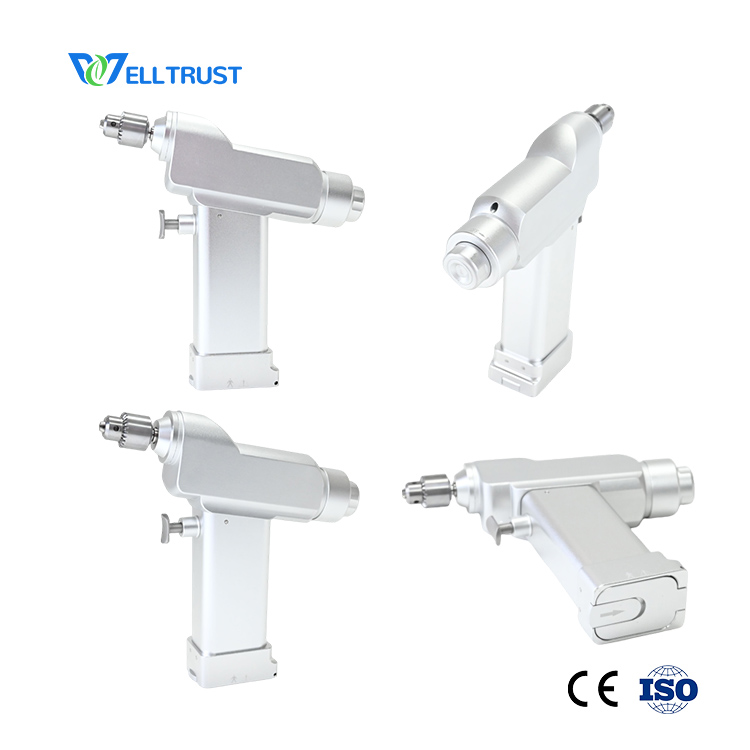

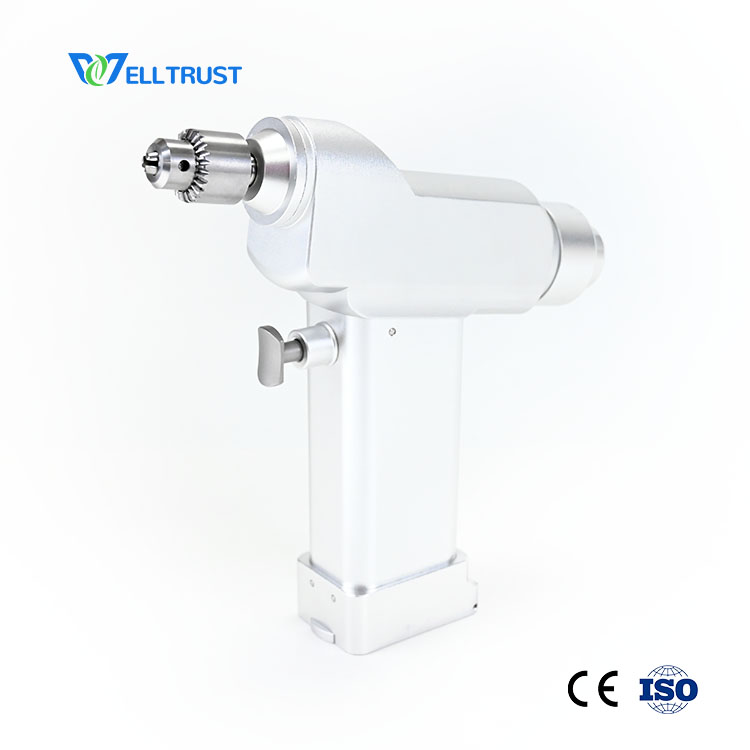

Micro vet surgical orthopaedic cannulated bone drill with lithium battery

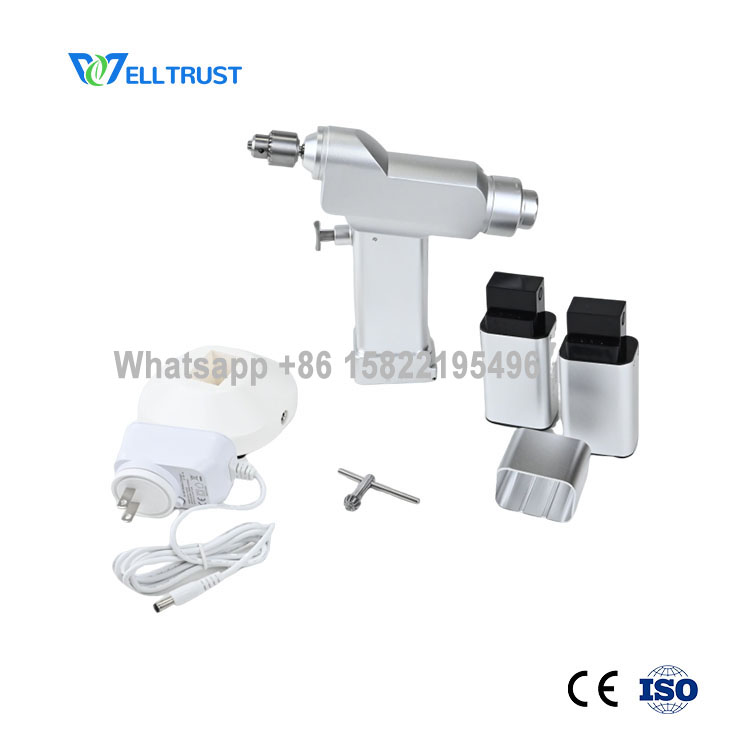

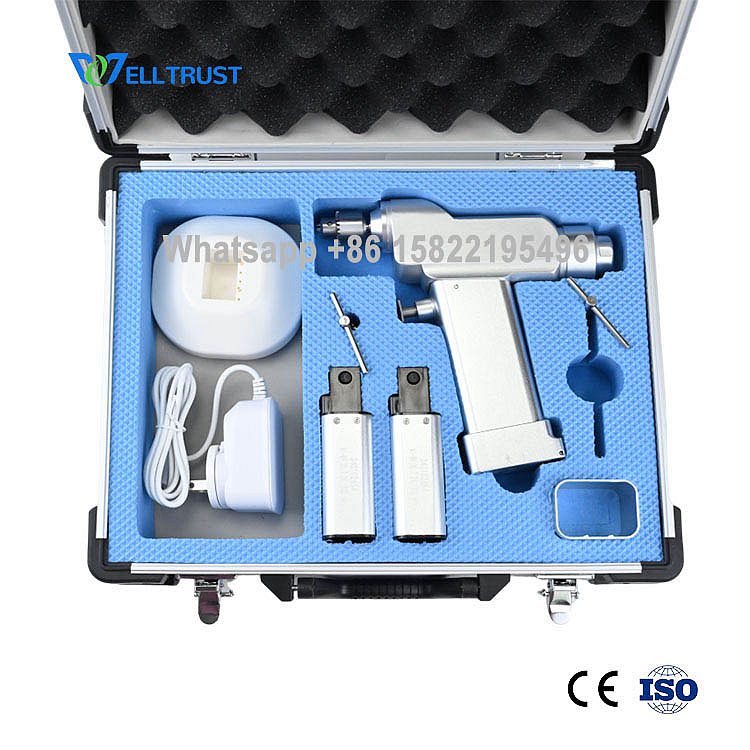

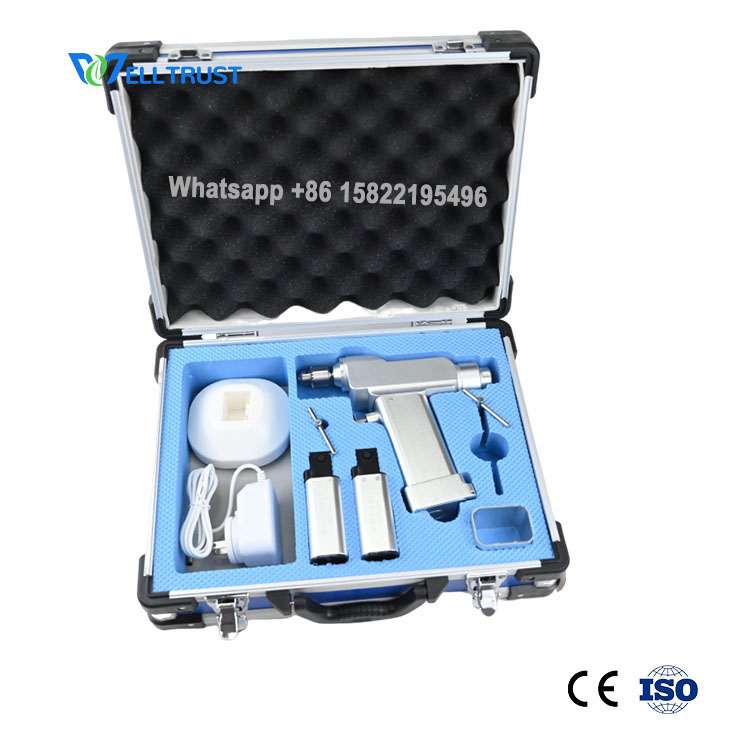

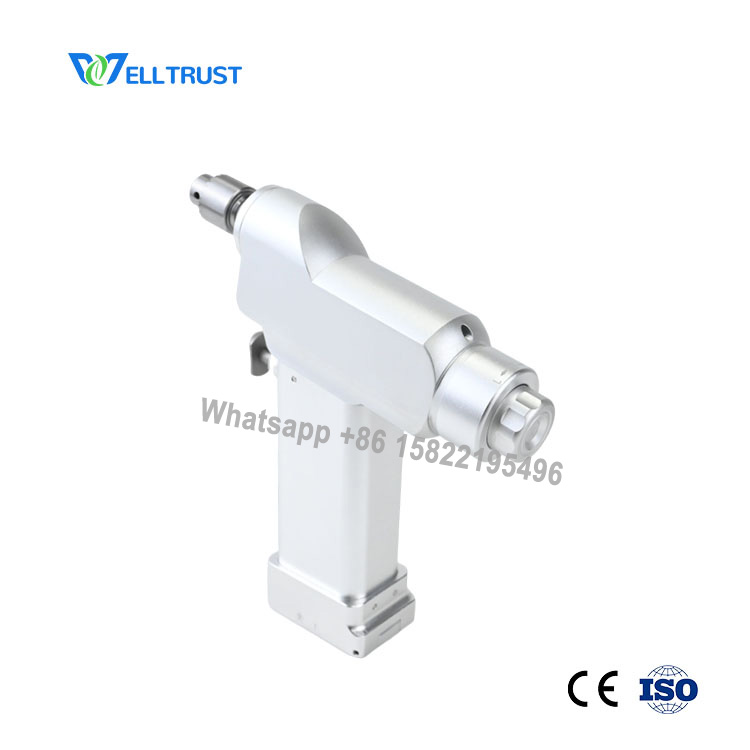

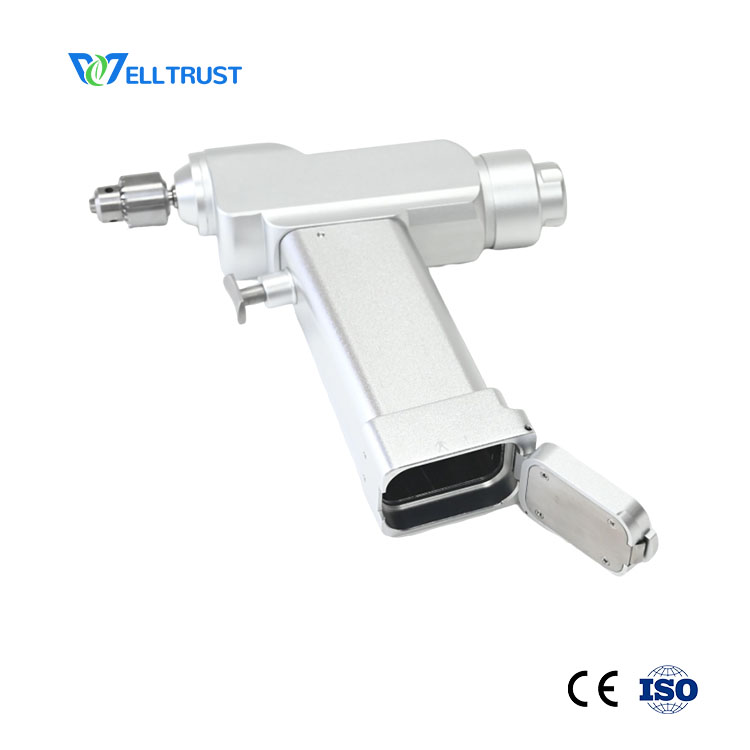

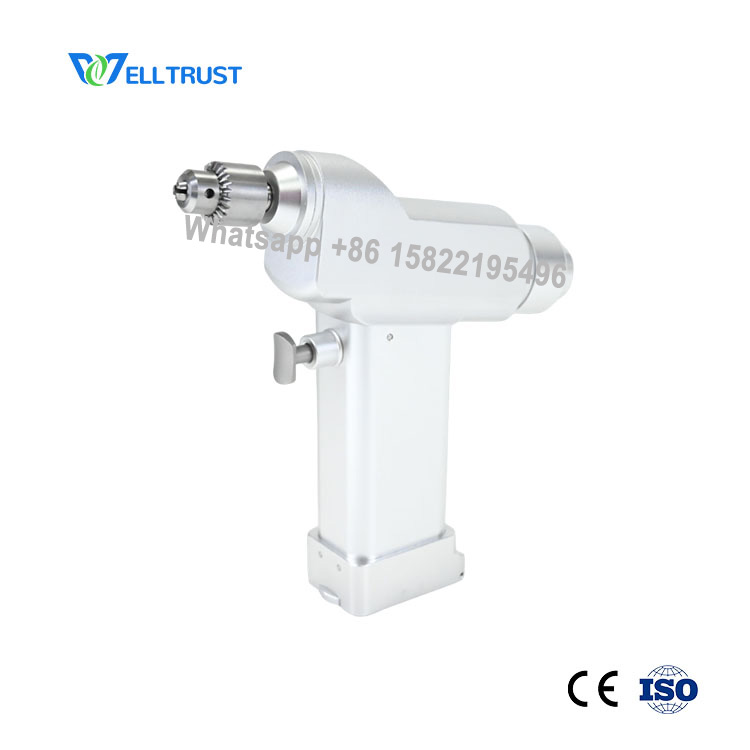

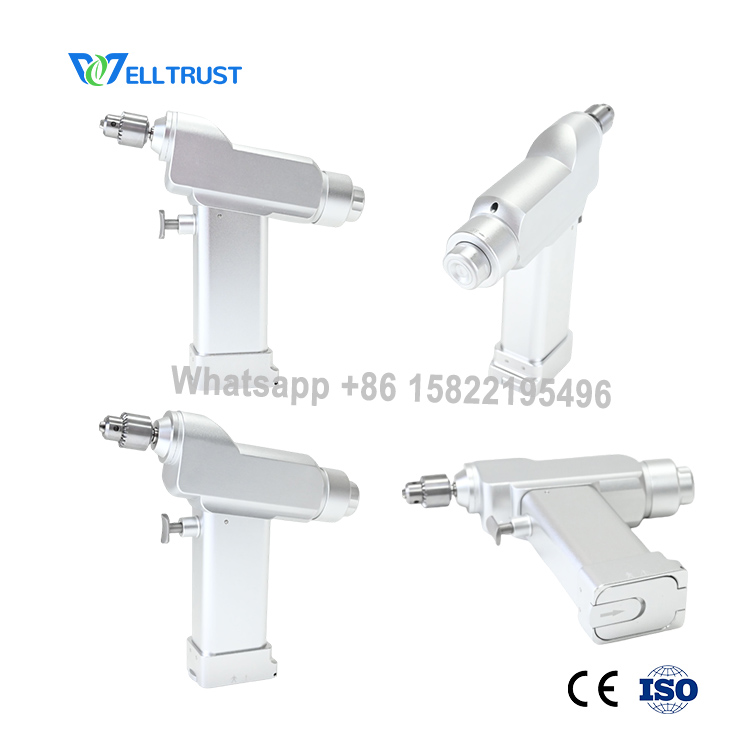

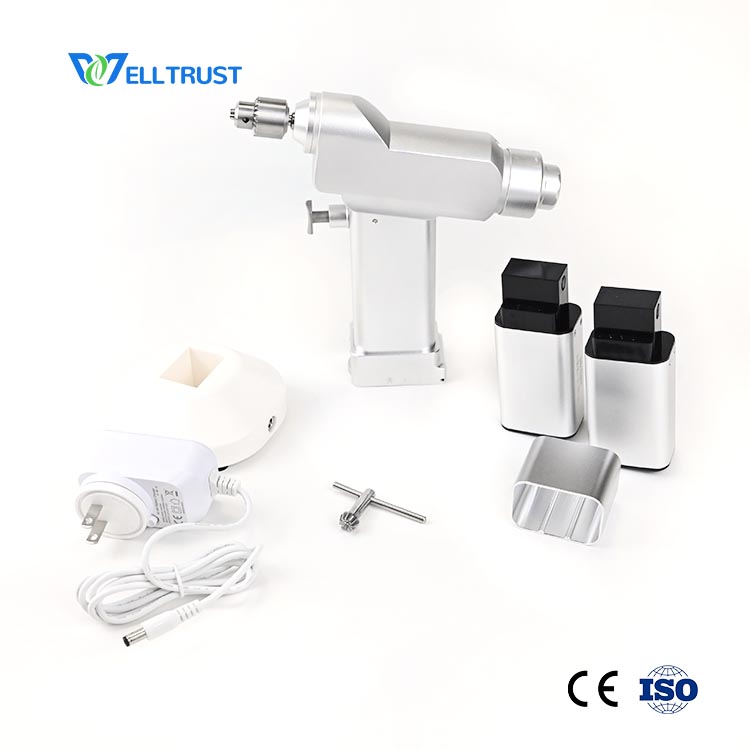

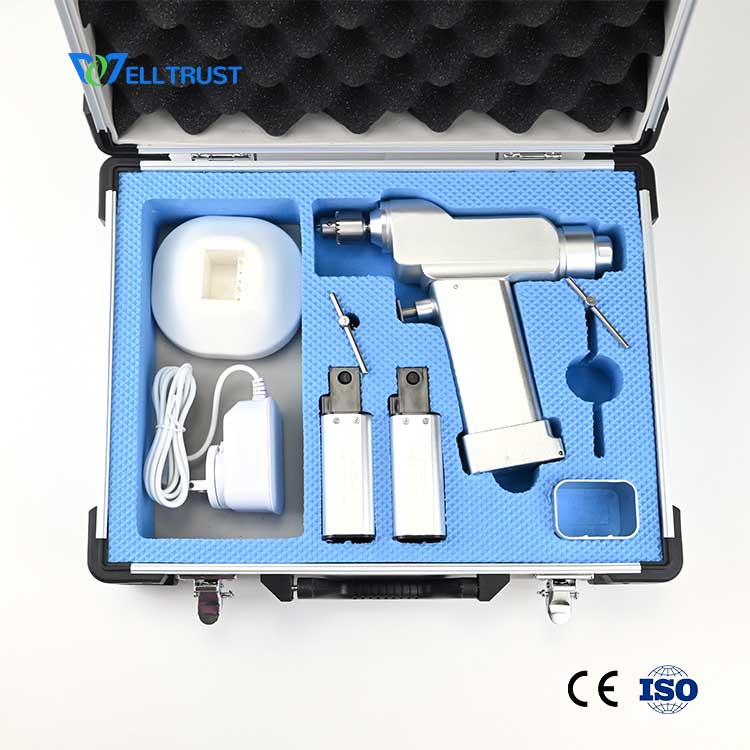

The BD140 orthopaedic drill micro type is small orthopedic power tools especially suitable for small bone surgery and veterianry surgery. The drill handpiece is only 0.8kg, lightweight and convenient for orthopedic surgeon to operate during operation. The handpiece is cannulated, allowing long drill bits and kwire pins to pass through. The biggest drill bit acceptable is max 4mm and the biggest acceptable kirschner wire diameter is 2.5mm. The whole drill set package has small dimension and light weight to ship, economic for courier shipping.
| Parameter | Values |
| Speed | 0-1200rpm |
| Torque | 2.9N.m |
| Sterilization temperature | ≤135°C |
| Noise | ≤45dB |
| Operation(V) voltage | 7.2V |
| Radial circle run-out | ≤0.1mm |
| Axial movement | ≤0.5mm |
| Battery capacity | 1800mAh |
| Input voltage | 110V-220V |
| Chuck gripper range | max 4mm |
| Through Kirschner wire diameter |
≤ 2.5mm |
| Battery type | NI-MH |
| Output power |
80W |
| Battery lasting time |
30 minutes after be fully charged (also depends on how to use it) |
How to sterilize orthopaedic drill
The small orthopaedic drill is autocalvable by high temperature and high pressure. The whole machine is forbidden to disinfect by low-temperature plasma or ethylene oxide, otherwise the machine will be damaged.
Company information
WELLTRUST is a professional surgical power tools manufacturer from China able to customize various of bone drill and saw for orthopedic surgery, including surgical bone drill, cannulate drill, reaming drill, multifunctional drill and saw, neurosurgical drill and orthopedic saw. All power tools are certified by CE & ISO13485 global standard. Ortho drill medical equipment with specific technical parameter has different performance to meet different surgery purpose. We use the material of alluminum alloy and stainless steel, with lightweight and durability. We are capable to produce bone drill and orthopedic saw with oem interfaces compatible with mainframe brands in the world at a economic cost.
