Cast Saw Blade
A cast saw blade is a circular saw blade used by trained healthcare professionals to remove casts. It operates at a specific frequency to cut through casting material without damaging the skin.
Medical Precision Cutting Tool Stainless Steel Plaster Saw Blade
APPLICATION: Used For Cutting Fiberglass, Composites, High Polymer Bandage & Plaster Casts
FEATURES:
-
Cast saw blade material is high quality stainless steel
-
Cast saw blade size can be designed by your order
-
Price is negotiable according to your order quantity
-
Hardened steel provides greater durability. We perform special sharpening process that provides a sharper, and longer-lasting cutting edge.
-
MOQ for cast saw blade is one piece.
- Installation:
Remove worn blade and discard, but retain mounting hardware including nut, shakeproof washer and collar
Place new blade on shaft as far as it will go with slots in blade aligned with pin in shaft
Place collar on shaft with slotted side facing blade and slots aligned with pin on shaft
Place shakeproof washer on shaft
Thread on nut and tighten securely. Be certain blade and collar remain aligned on pin
Instruction
- During operation, hold the saw firmly, lay it on the cut plaster slowly and cut the plaster perpendicularly. Don’t cut it through once if you are not sure (although the saw has soft tissue protection function).
- Cut the plaster perpendicularly, lift it and move forward, lay it on the lower cut section slowly, repeat the above course until finishing the task.
When the saw teeth are obtunded after a long time of use, loosen the cap and rotate the saw blade counter clockwise with a 5mm socket hexagonal wrench, then tighten it clockwise.
Standard configuration for plaster saw set
1) One mainframe handpiece

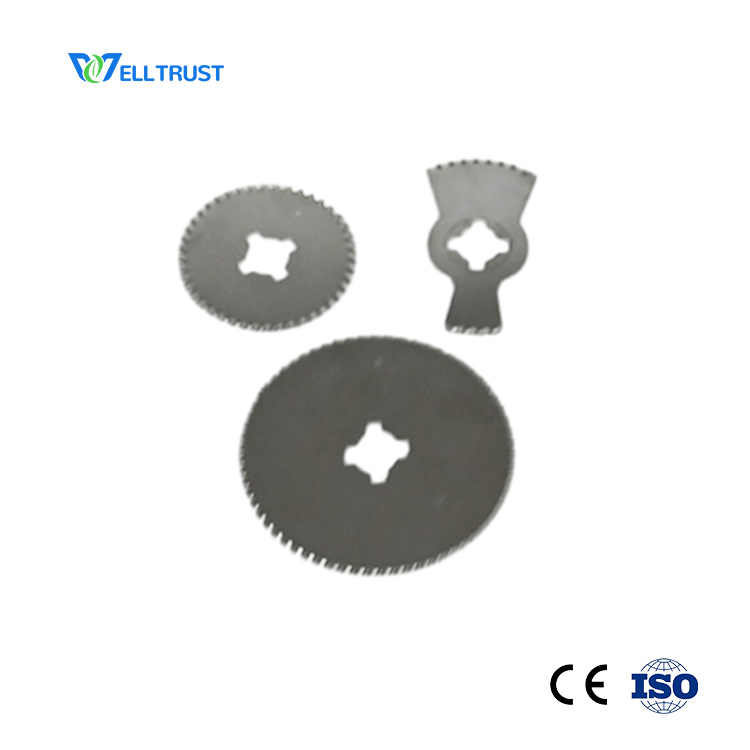

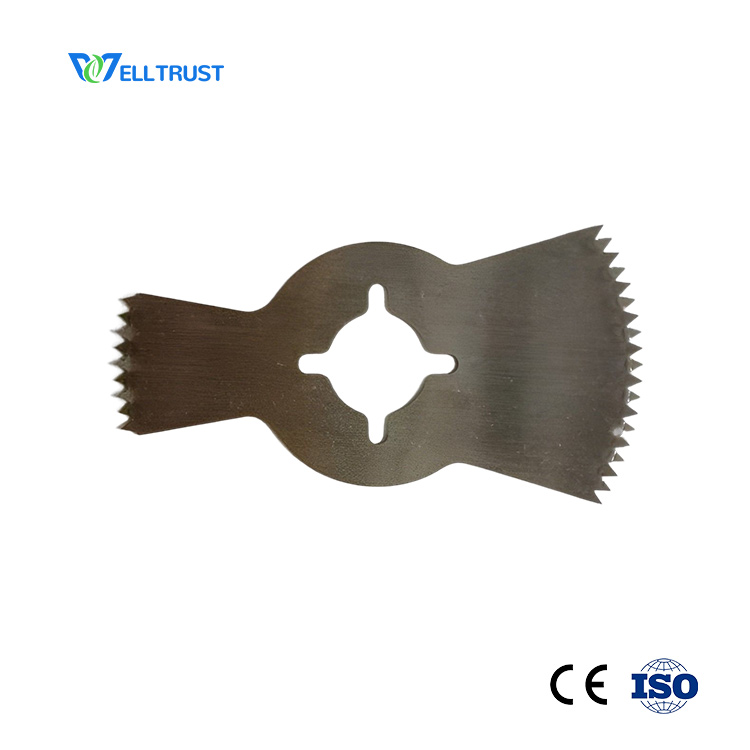

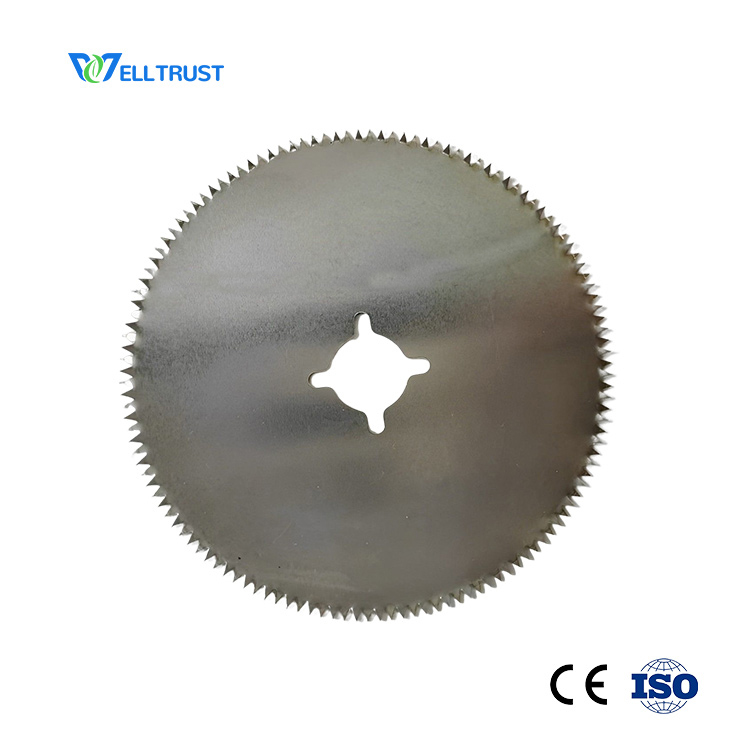

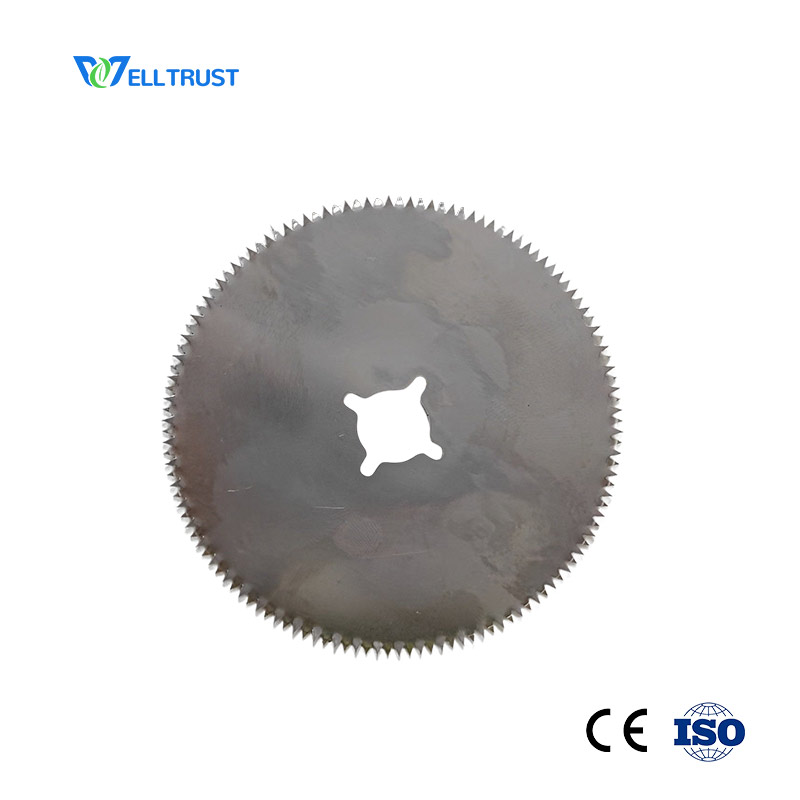

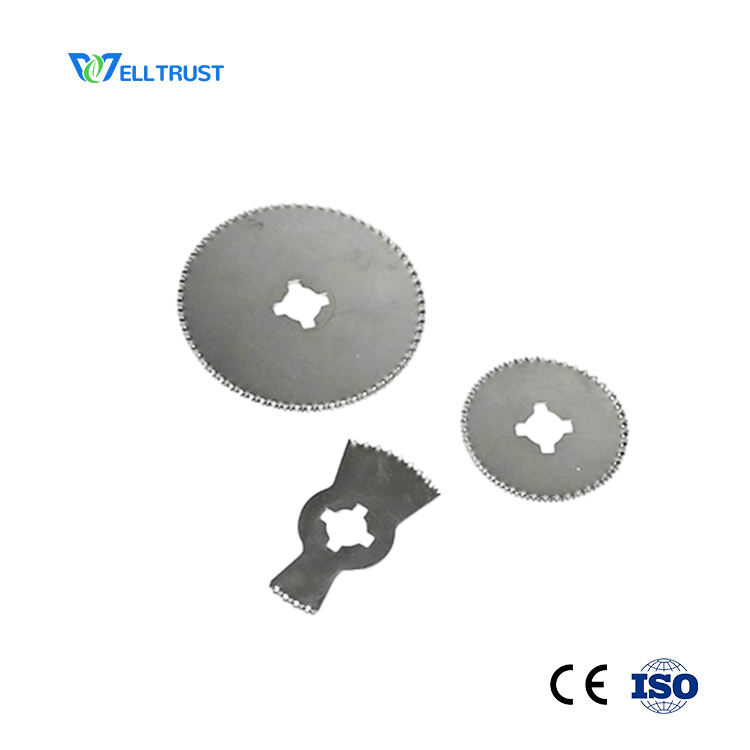

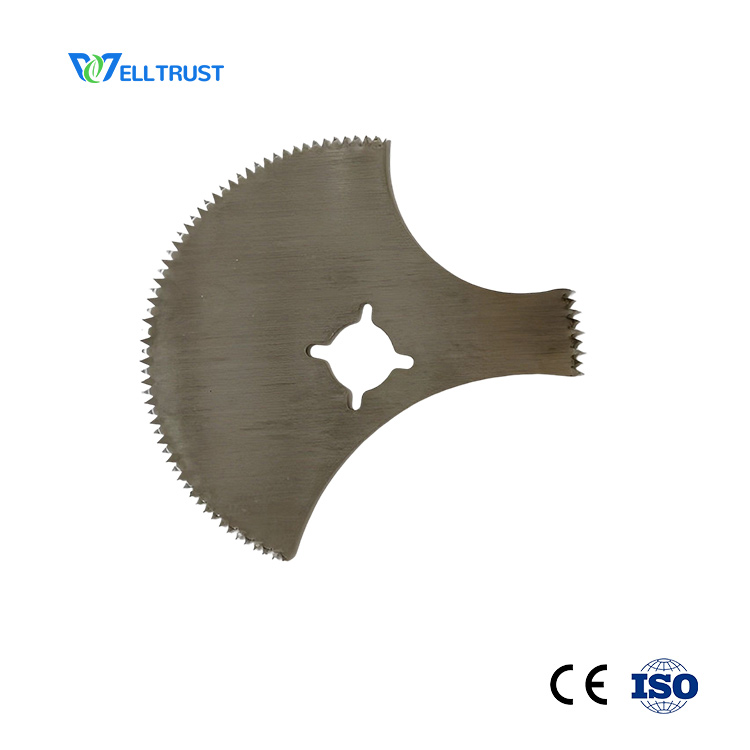

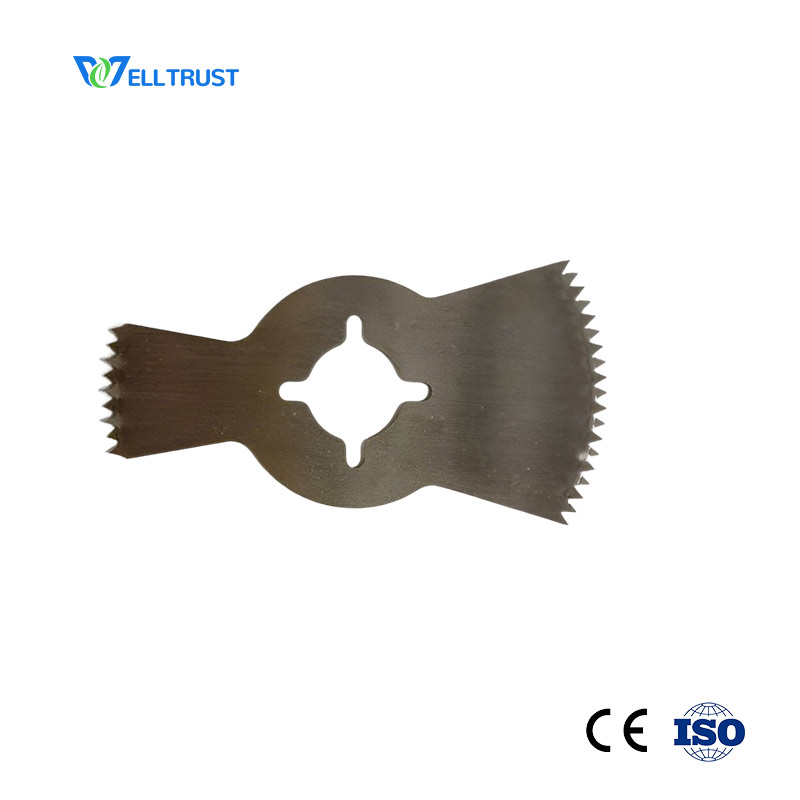

2) Three blades : 1*big round blade. 1*small round blade 1*fan-shaped saw blade
3) One spanner
4) One aluminium alloy packing box
Company information
WELLTRUST is an expert orthopedic power tools manufacturer integrated with r&d, production and sales. All surgical power tools are certified by CE & ISO13485 global standard. We welcome global orthopedic product distributors to contact us to start long-term business relationships.
